Model Mini Triple A

  • Optimized for 360º cleaning
  • Compatible with 1/8" Flat Spray Nozzles
  • Works with foam and/or water
  • Suitable for tanks up to 2m in diameter
  • Food & bevarage, CIP-installations and more
Technical details

Optimized for 360º cleaning

Spray Pattern: 360º round

Smart Design

Compact 3-nozzle design for full 360º spray in a small unit

Reliable

Operates reliably at low pressure with reduced water & chemicals

Versatile

One nozzle sprays up at 45º, one down at 45º and one vertically

Precise targeting

Each nozzle adjusts 90º for precise targeting

Compatible

Fits 1/8" flat spray nozzles for precision

Rotation

Maintains rotation with minimal resources

Compact Design

Passes through openings as small as 85 mm

Common use

Suitable for cleaning tanks up to 2 meters in diameter

Cleaning agents

Works with foam or water

Industry

Food & bevarage, CIP-installations, tank cleaning

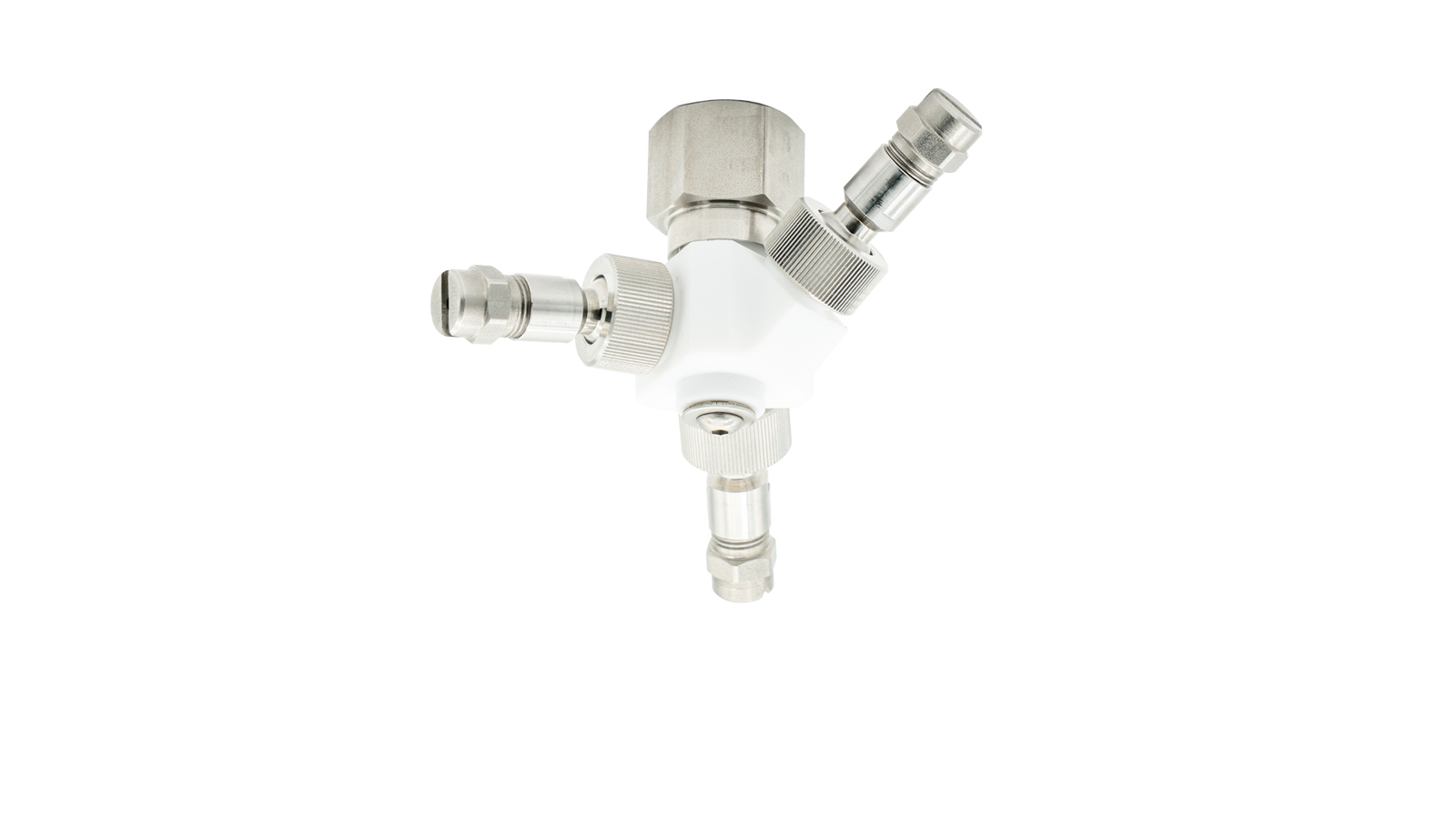

GyraFlex Model Mini Triple A

The GyraFlex Model Mini Triple A is designed for high-performance cleaning with an optimized 360º spray pattern that ensures complete internal coverage. A controlled rotation mechanism delivers consistent and efficient cleaning while reducing water and chemical use. With three adjustable nozzles positioned vertically, at 45º upward and at 45º downward, the unit achieves full 360º distribution to reach all internal surfaces.

Compact in design, it passes through openings as small as 85 mm and is suitable for tanks up to 2 meters in diameter. The Mini Triple A is effective for both foam and water cleaning applications.

For detailed specifications and configuration options, please contact our technical team.

Technical details

  • Pressure: 2-20 bar
  • Temperature: Min 2ºC - Max: 200ºC
  • Materials: PTFE Body with stainless steel 316 components
  • Angle guide: <5 bar: 80º | >5 bar: 65º
  • Cleaning: 360º
  • Clearance (mm): 85 - 100
  • Spray Coverage (m): 6 wide, 1.5 high
  • Spray Pattern: Optimized for 360º Cleaning
  • Compatibility: 1/8" flat spray nozzles
